1tRIPr & TRU-aPLYr Strip Tillage

Precision Strip-Tillage For Ideal Planting Conditions

Discover
1tRIPr & TRU-aPLYr

Why are the 1tRIPr & TRU-aPLYr a Tough Act to Follow?

Optimal Root-Zone Conditioning

Create an ideal environment throughout the growing cycle by shattering compaction in the root zone, eliminating subsoil voids and creating twice as many beneficial pores for improved below-ground development.

Ideal Seedbed Preparation

For a quick start and robust germination, the 1tRIPr II maximizes existing soil moisture and increases water infiltration to create a warm, consistent seedbed with uniform seed-to-soil contact.

Precision Nutrient Placement

Compatible with dry, liquid, or NH3 fertilizers, and its independent row-depth control allows a precise placement of multiple nutrients at adjustable depths for efficient uptake timing.

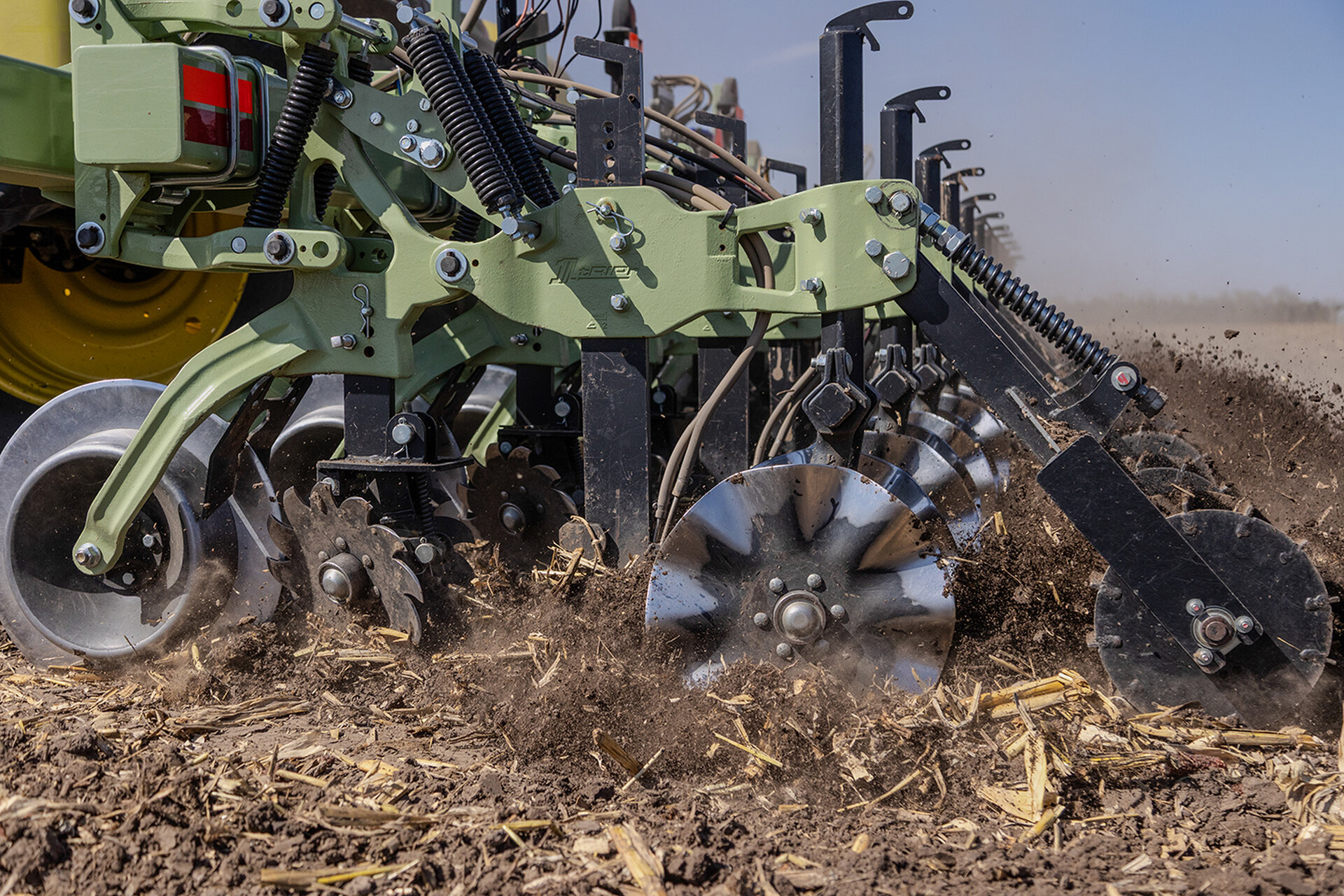

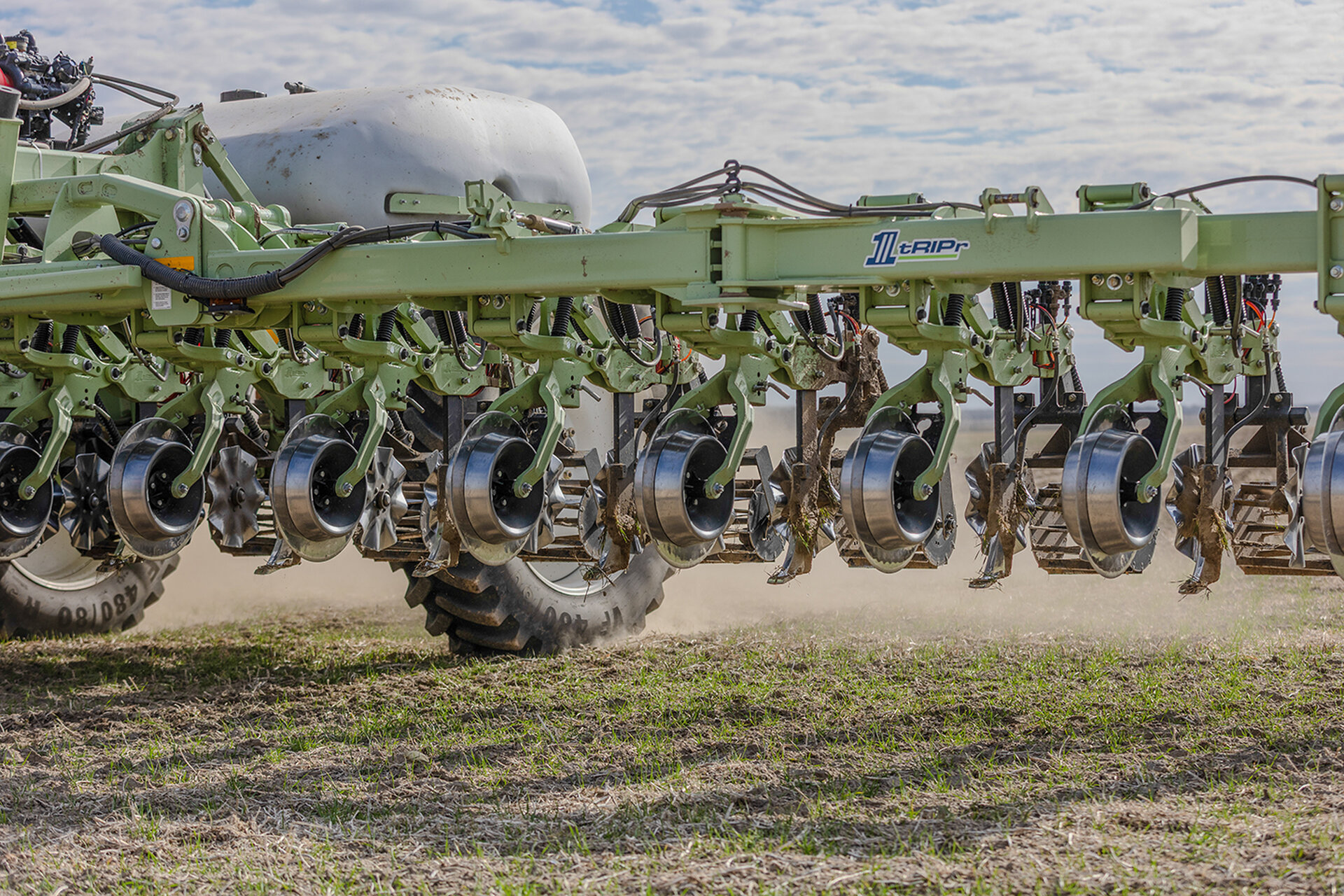

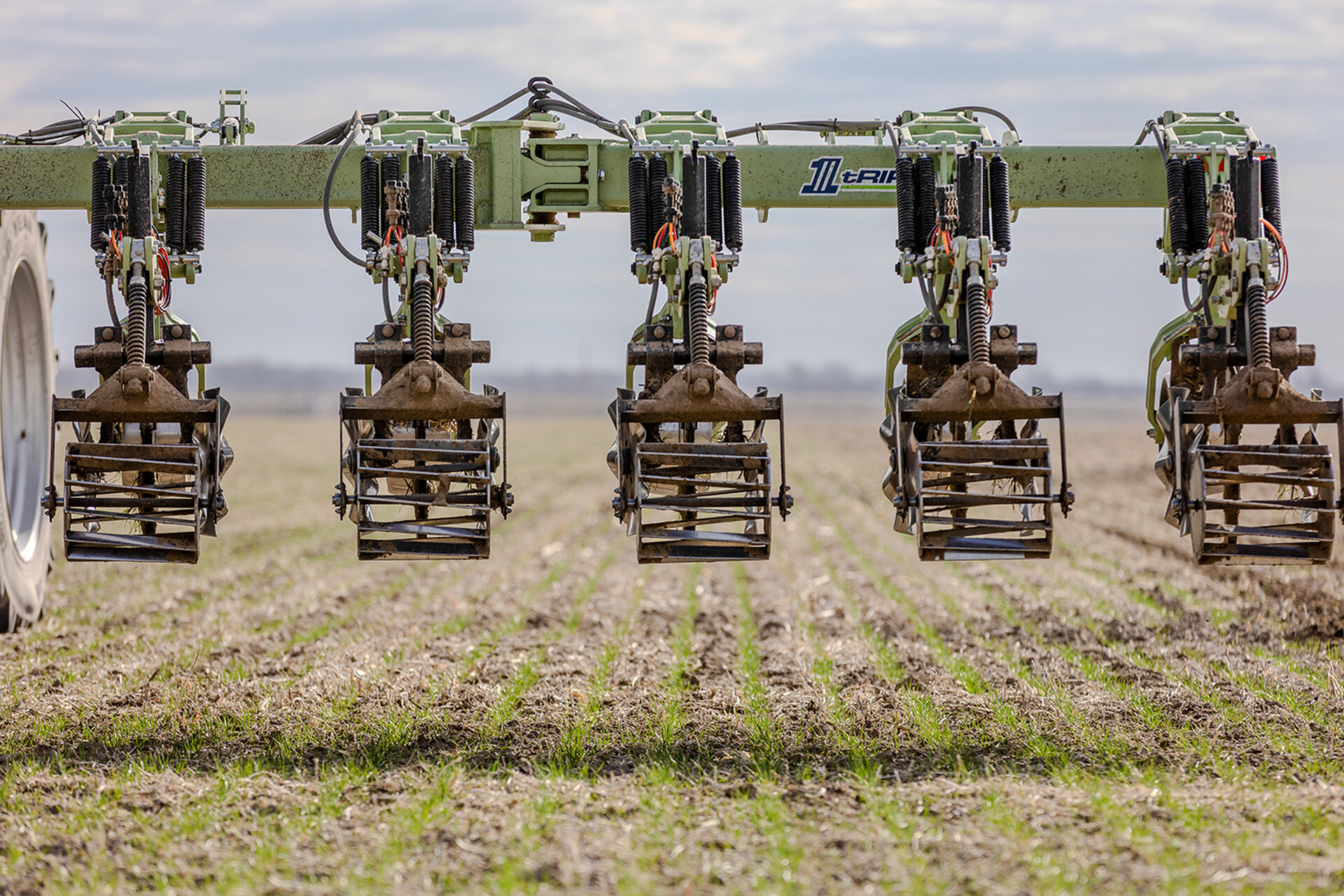

Row Unit

Revolutionizing Soil Preparation

Orthman row units pack all the latest precision tillage technology into one rugged package. They are engineered to create ideal soil conditions for maximum yields while minimizing input costs for a successful strip-till seedbed.

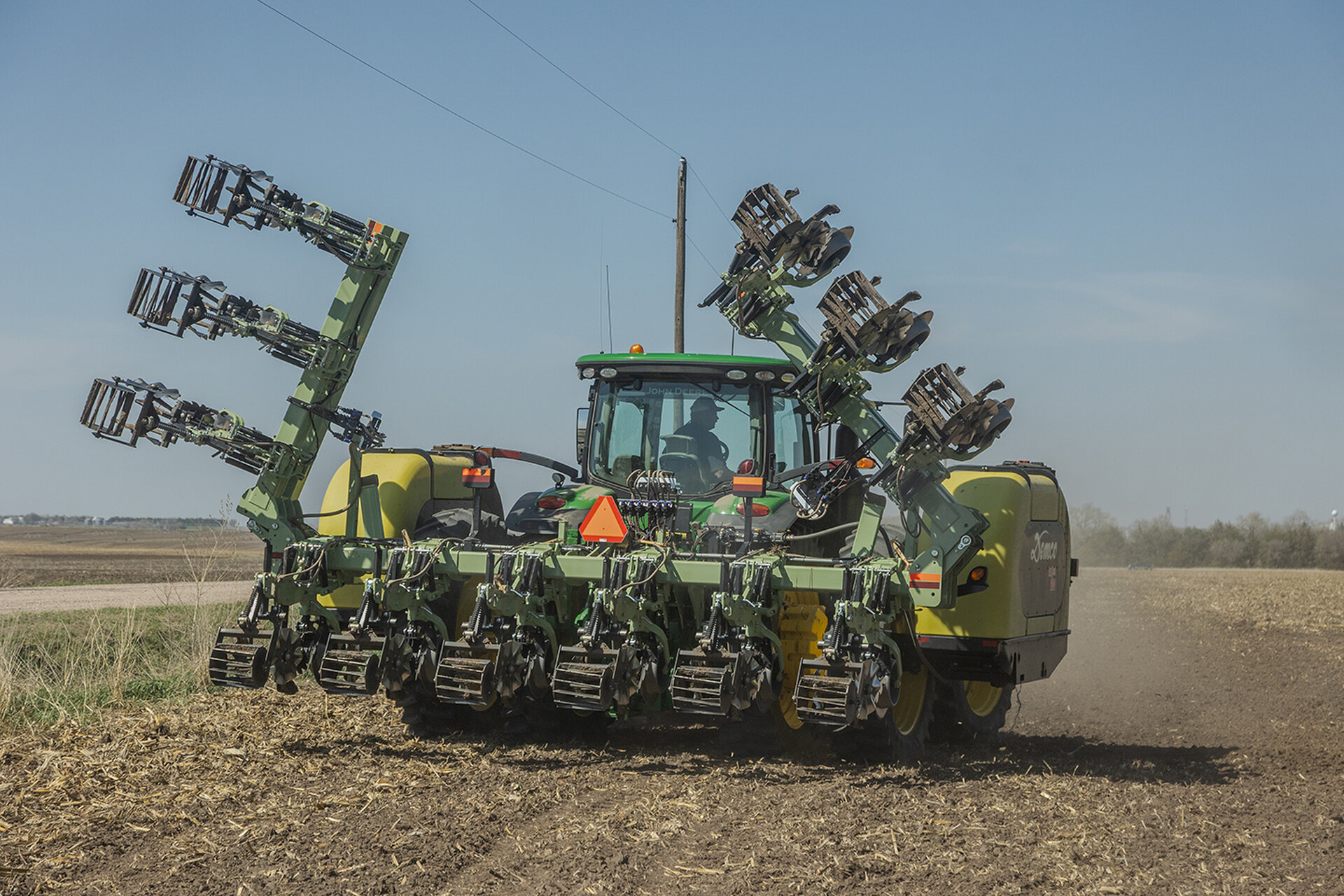

3-Point Toolbars

Time-Tested 3-Point Mounted Toolbars with Innovative Strip-Till Row Units

3-point mounted 1tRIPr strip-tillage tools use the time-tested Orthman toolbar with innovative internal hydraulic fold cylinders and in-line boring of the fold hinges for long-term, trouble-free use.

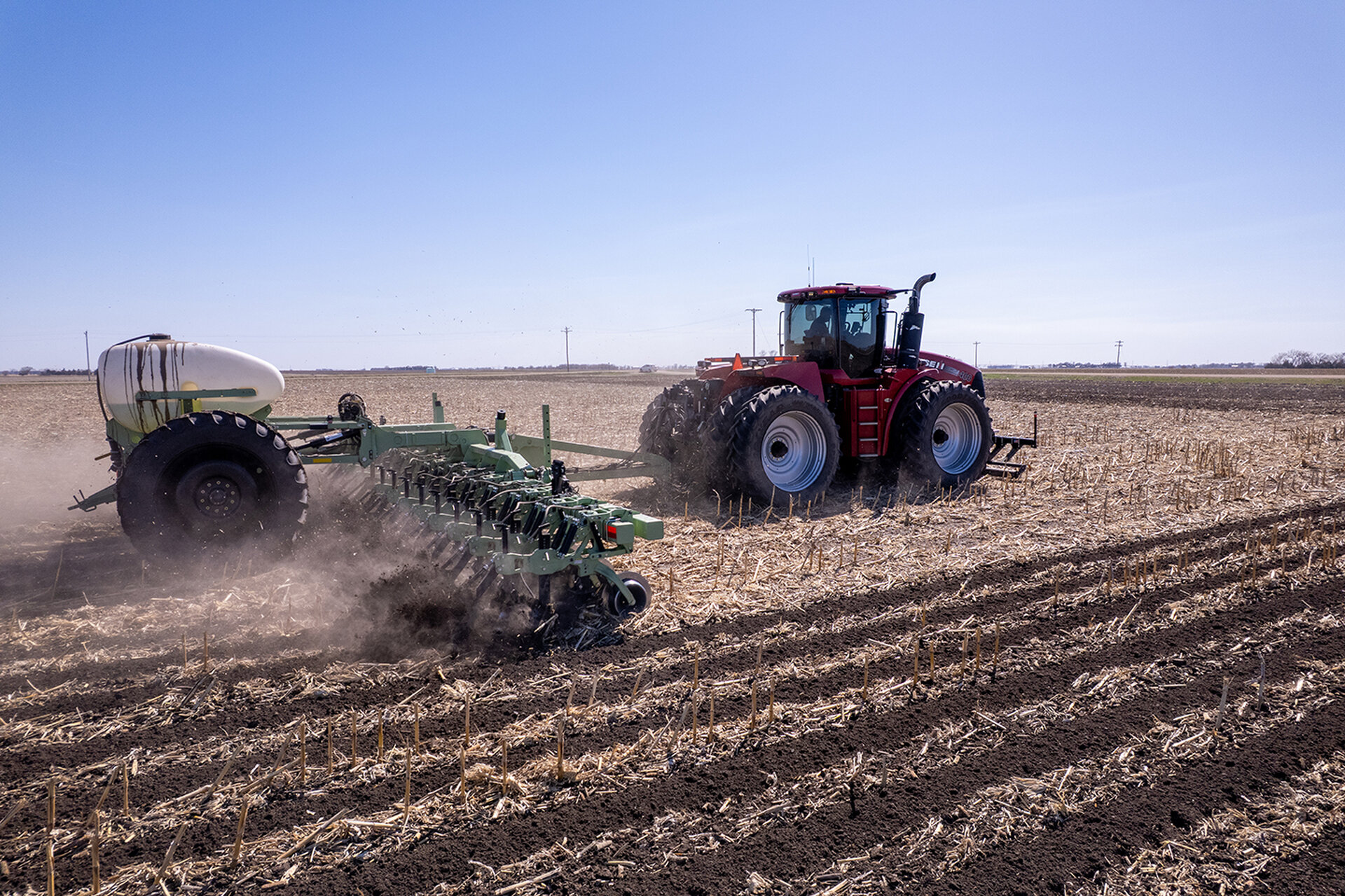

XD Pull-Type Frames

Rugged pull-type strip-till frames for long-term performance

Built for today’s high-acreage, high-performing farming operations, the 1tRIPr XD strip-tillage tool features a large frame design with innovative row units and a wide variety of fertilizer delivery options

TRU-aPLYr Fertilizer Systems

Maximizing Precision and Efficiency

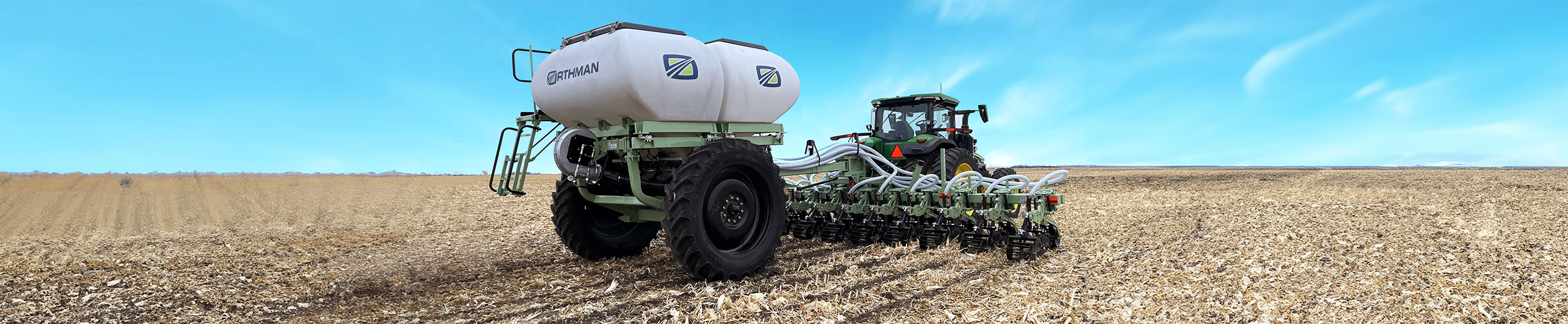

The TRU-aPLYr dry fertilizer system features dual 6-ton tanks for a 12-ton total capacity of dry fertilizer.  Each hopper features a scale system to accurately track the weight of each hopper individually, weather-tight lids and debris filter screens.  Fertilizer is precisely and accurately applied with an innovative electric-drive metering system, a standard ISOBUS rate controller that integrates with field prescriptions, 4-section plumbing and a high-performance fan that is designed for higher application rates.

Options & Accessories

Tailored Solutions to Suit Your Farming Operation

Customize your 1tRIPr strip-tillage tool to fit your operation's needs.

Specifications

Size

4-Row

Rigid 3-Point Mounted 1tRIPr

6-Row

Rigid 3-Point Mounted 1tRIPr

8-Row

Rigid 3-Point Mounted 1tRIPr
Spacing 22” 30” 36” 38” 40” 22” 30” 36” 38” 40” 22” 30” 30” 30” 36” 38” 40”
Toolbar Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Single 7x7 Double 5x7&7x7 Single 7x7 Single 7x7 Single 7x7
Hitch CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 4/4N CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N
Frame Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid Rigid
Rear Basket 8" 14" 14" 14" 14" 8" 14" 14" 14" 14" 8" 14" 14" 14" 14" 14" 14"
Trans. Width 9’ 8” 9’ 8” 12’ 0” 12’ 0” 12’ 0” 15’ 0” 15’ 0” 19’ 0” 19’ 0” 19’ 0” 15’ 0” 20’ 0” 20’ 0” 20’ 1” 24’ 0” 25’ 0” 25’ 0”
Trans. Height 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10” 6’ 10”
Work Width 9’ 8” 9’ 8” 12’ 0” 12’ 0” 12’ 0” 15’ 0” 15’ 0” 19’ 0” 19’ 0” 19’ 0” 15’ 0” 20’ 0” 20’ 0” 20’ 1” 24’ 0” 25’ 0” 25’ 0”
Trans. Length 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 6’ 11” 7’ 0” 6’ 11” 6’ 11” 6’ 11”
Shank Trip Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset
Approx. Weight 3,099 lbs 3,219 lbs 3,143 lbs 3,263 lbs 3,919 lbs 4,039 lbs 3,919 lbs 4,039 lbs 3,919 lbs 4,039 lbs 5,284 lbs 5,464 lbs 5,350 lbs 5,530 lbs 5,604 lbs 5,784 lbs 5,604 lbs 5,784 lbs 5,604 lbs 5,784 lbs 6,659 lbs 6,899 lbs 6,970 lbs 7,210 lbs 6,970 lbs 7,210 lbs 7,043 lbs 7,283 lbs 7,086 lbs 7,326 lbs 7,118 lbs 7,358 lbs 7,118 lbs 7,358 lbs
Min. HP 100 100 100 100 100 150 150 150 150 150 200 200 200 200 200 200 200
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.
TRU-aPLYr Fertilizer System with 3-Point TRU-Steer Cart Specifications
Tank 2,000 Gallon Liquid Fert 2,000 Gallon Liquid Fert 2,000 Gallon Liquid Fert 2,000 Gallon Liquid Fert
Rows Rigid Rigid Rigid Rigid
Spacing 20" & 30" 22" 36" 38" & 40"
Trans. Width 11' 4" 12' 4" 13' 4' 14' 4"
Trans. Height 11' 11' 11' 11'
Work Width 11' 4" 12' 4" 13' 4" 14' 4"
Trans. Length 24' 24' 24' 24'
Empty Weight 7,600 lbs 7,640 lbs 7,670 lbs 7,730 lbs
Tires 380/90 R46 380/90 R46 380/90 R46 380/90 R46
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.

Size

8-Row

Folding 3-Point Mounted 1tRIPr

12-Row

Folding 3-Point Mounted 1tRIPr

16-Row

Folding 3-Point Mounted 1tRIPr

18-Row

Folding 3-Point Mounted 1tRIPr
Spacing 30” 36” 38” 40” 20” 30” 36” 38” 40” 20” 30” 36” 38” 38” 40” 20” 30”
Toolbar Double 5x7 & 7x7 Double 5x7 & 7x7 Double 5x7 & 7x7 Double 5x7 & 7x7 Double 5x7 & 7x7 Double 5x7 & 7x7 Double 7x7 & 7x7 Double 7x7 & 7x7 Double 7x7 & 7x7 Double 7x7 & 7x7 Double 7x7 & 7x7 Double 7x7 w/Top Truss Double 7x7 w/Top Truss Double 7x7 w/Top Truss Double 7x7 w/Top Truss Double 7x7 & 7x7 Double 7x7 w/Top Truss
Hitch CAT 3/3N CAT 3/3N CAT 3/3N CAT 3/3N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N CAT 4/4N
Frame 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 180° Flat Fold 160° Fold 160° Fold 160° Fold 160° Fold 180° Flat Fold 160° Fold
Rear Basket 14" 14" 14" 14" 8" 14" 14" 14" 14" 8" 14" 14" 14" 14" 14" 8" 14"
Trans. Width 11’ 8” 13’ 10” 14’ 8” 14’ 8” 12’ 11” 16’ 10” 19’ 5” 21’ 3” 21’ 3” 15’ 3” 21’ 8” 26’ 9” 26’ 9” 28’ 1” 28’ 1” 17’ 7” 26’ 11”
Trans. Height 11’ 10” 11’ 10” 11’ 10” 11’ 10” 6’ 10” 11’ 10” 11’ 10” 11’ 10” 11’ 10” 11’ 10” 11’ 10” 14’ 3” 14’ 3” 14’ 8” 14’ 8” 11’ 10” 13’ 7”
Work Width 18’ 10” 23’ 3” 24’ 8” 24’ 8” 21’ 10” 28’ 10” 34’ 4” 38’ 0” 38’ 0” 26’ 1” 38’ 10” 48’ 8” 48’ 8” 51’ 5” 51’ 5” 29’ 4” 44’ 1”
Trans. Length 7’ 0” 7’ 0” 7’ 0” 7’ 0” 7’ 0” 7’ 0” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2” 7’ 2”
Shank Trip Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset
Approx. Weight 7,766 lbs 8,006 lbs 8,048 lbs 8,288 lbs 8,140 lbs 8,380 lbs 8,140 lbs 8,380 lbs 10,101 lbs 10,461 lbs 11,238 lbs 11,598 lbs 12,322 lbs 12,682 lbs 12,595 lbs 12,955 lbs 12,595 lbs 12,955 lbs 14,397 lbs 14,877 lbs 14,371 lbs 14,851 lbs 17,028 lbs 17,508 lbs 17,028 lbs 17,508 lbs 17,303 lbs 17,783 lbs 17,303 lbs 17,783 lbs 16,028 lbs 16,568 lbs 18,030 lbs 18,570 lbs
Min. HP 200 200 200 200 300 300 300 300 300 400 400 400 400 400 400 450 450
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.
TRU-aPLYr Fertilizer System with 3-Point TRU-Steer Cart
Tank 12-Ton Dry Fertilizer Dual 6-Ton Tanks 2,000 Gallon Liquid Fert 2,000 Gallon Liquid Fert 2,000 Gallon Liquid Fert 2,000 Gallon Liquid Fert
Rows 12 12 12 16 Folding Folding Folding Folding
Spacing 30" 36" 38" & 40" 20" & 30" All 20" & 6-16 30" 22" 8-12 36" 8-12 38" & 40"
Trans. Width 12' 2" 13' 4" 14' 4" 12' 2" 11' 4" 12' 4" 13' 4' 14' 4"
Trans. Height 12' 4" 12' 4" 12' 4" 12' 4" 11' 11' 11' 11'
Work Width 12' 2" 13' 4" 14' 4" 12' 2" 11' 4" 12' 4" 13' 4" 14' 4"
Trans. Length 24' 6" 24' 6" 24' 6" 24' 6" 24' 24' 24' 24'
Empty Weight 9,820 lbs 9,890 lbs 9,950 lbs 9,820 lbs 7,600 lbs 7,640 lbs 7,670 lbs 7,730 lbs
Tires 380/90 R46 380/90 R46 380/90 R46 380/90 R46 380/90 R46 380/90 R46 380/90 R46 380/90 R46
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.

Size

8-Row

Pull-Type 1tRIPr

12-Row

Pull-Type 1tRIPr

16-Row

Pull-Type 1tRIPr

18-Row

Pull-Type 1tRIPr
Spacing 30” 30” 22” 30” 30” 30” 36” 38” 40” 22” 30” 30” 30” 36” 20” 22” 30” 30”
Frame XD Folding XD Combo Folding XD Folding XD Folding XD Combo Folding XD Narrow Fold XD Folding XD Folding XD Folding XD Folding XD Folding XD Combo Folding XD Narrow Fold XD Folding XD Folding XD Folding XD Folding XD Narrow Fold
Rear Basket 14" 14" 8" 14" 14" 14" 14" 14" 14" 8" 14" 14" 14" 14" 8" 8" 14" 14"
Tires Single 380/90R46 Planter Lift-Assist (4-385/65R22.5) Single 380/90R46 Single 380/90R46 Planter Lift-Assist (4-385/65R22.5) Single 380/90R46 Single 380/90R46 Single 380/90R46 Single 380/90R46 Single 380/90R46 Single 380/90R46 Planter Lift-Assist (4-385/65R22.5) Single 380/90R46 Single 380/90R46 Single 380/90R46 Single 380/90R46 Single 380/90R46 Single 380/90R46
Trans. Width 11' 6" 11' 6" 16' 8" 16' 8" 16' 8" 11' 8" 19' 8" 20' 10" 20' 10" 18' 2" 22' 2" 22' 2" 16' 6" 25' 2" 19' 2" 21' 2" 27' 10" 16' 6"
Trans. Height 11' 8" 11' 4" 11' 10" 12' 6" 12' 11' 7" 12' 10" 13' 13' 12' 8" 13' 3" 12' 10" 12' 4" 14' 12' 4" 12' 6" 13' 6" 12' 8"
Work Width 18' 10" 18' 10" 23' 28' 10" 28' 10" 28' 10" 34' 6" 38' 38' 29' 4" 39' 2" 39' 2" 39' 46' 6" 30' 6" 33' 44' 2" 44'
Trans. Length 26' 6" 26' 6" 28' 6' 26' 6" 26' 6" 26' 6" 26' 6" 26' 6" 26' 6' 28' 6' 26' 6" 26' 6" 26' 6" 26' 6" 28' 6' 28' 6" 26' 6" 26' 6"
Shank Trip Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset
Approx. Weight 15,840 lbs 16,060 lbs 17,320 lbs 17,560 lbs 19,880 lbs 20,240 lbs 19,590 lbs 19,950 lbs 20,730 lbs 21,090 lbs 21,050 lbs 21,410 lbs 21,070 lbs 21,430 lbs 21,090 lbs 21,450 lbs 21,090 lbs 21,450 lbs 23,450 lbs 24,020 lbs 24,130 lbs 24,610 lbs 27,220 lbs 27,700 lbs 24,640 lbs 25,210 lbs 24,870 lbs 25,440 lbs 28,240 lbs 28,780 lbs 24,780 lbs 25,310 lbs 25,610 lbs 26,150 lbs 26,770 lbs 27,310 lbs
Tongue Weight 4,950 lbs 5,030 lbs 5,520 lbs 5,610 lbs 60,50 lbs 6,200 lbs 6,200 lbs 6,320 lbs 6,900 lbs 7,030 lbs 6,820 lbs 6,930 lbs 6,760 lbs 6,880 lbs 6,730 lbs 6,850 lbs 6,730 lbs 6,850 lbs 7,460 lbs 7,610 lbs 7,940 lbs 8,090 lbs 8,790 lbs 8,960 lbs 8,180 lbs 8,340 lbs 8,220 lbs 8,370 lbs 7,950 lbs 8,120 lbs 8,030 lbs 8,210 lbs 8,640 lbs 8,810 lbs 8,760 lbs 8,940 lbs
Min. HP - - - - - - - - - - - - - - - - - -
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.
1tRIPr XD with Mounted TRU-aPLYr Fertilizer System
Tank 12-Ton Dry Fertilizer Dual 6-Ton Tanks 12-Ton Dry Fertilizer Dual 6-Ton Tanks 1,000 Gallon Liquid Fert
Rows 12 16 16
Tires Single 380/90 R50 Single 380/90 R50 Single 380/90 R50
Trans. Width 16' 8" 22' 2" 22' 2"
Trans. Height 12' 6" 13' 3" 13' 3"
Work Width 28' 10" 39' 2" 39' 2"
Trans. Length 31' 31' 26' 6"
Shank Trip Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset
Approx. Weight 24,470 lbs 24,780 lbs 28,670 lbs 29,080 lbs 24,590 lbs 25,000 lbs
Empty Tongue Wgt 5,760 lbs 5,880 lbs 7,490 lbs 7,650 lbs 7,900 lbs 8,050 lbs
Loaded Tongue Wgt 3,630 lbs 3,750 lbs 5,360 lbs 5,520 lbs 7,550 lbs 7,710 lbs
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.
DIMENSIONS ABOVE FOR COMPLETE 1TRIPR XD WITH MOUNTED TRU-APLYR ON 30" SPACING
