Fallow Master & Blade Plow Fallow Tillage

High-Performance Conservation Tillage

Discover
Fallow Master & Blade Plow

Why is Fallow Master & Blade Plow a Tough Act to Follow?

Erosion Control

Wheat-fallow rotation methods of dryland farming remain the dominant cropping systems in many arid and semi-arid regions and conventional tillage practices leave the soil vulnerable to erosion.  Orthman fallow tillage tools are an effective tillage system, and help retain higher levels of surface residue and soil structure during the fallow period to limit erosion.

Water Retention

Orthman’s fallow tillage tools create the ideal conditions to maximize soil moisture retention. Residue maintenance on the soil surface helps trap snow, absorb raindrop impact, slow runoff and minimize evaporation, and also helps control weeds at critical times in the production cycle.

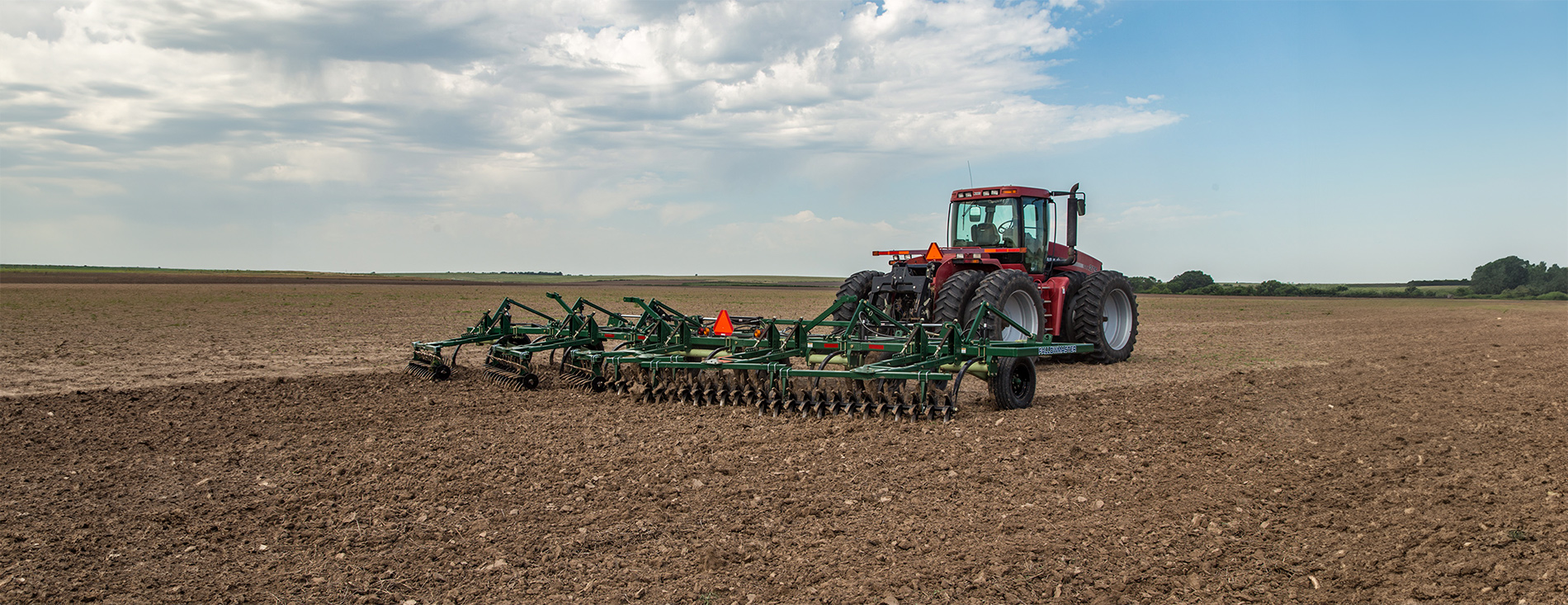

Fallow Master & Blade Plow

The Fallow Master is designed to give you high-efficiency tillage in a wide range of soil conditions by cutting through weeds and cover crops while leaving the majority of residue exposed for maximum water storage efficiency.  The Blade Plow conservation tillage machine features large overlapping hard-faced sweeps, high-strength steel standards and durable cutting coulters for a cost-effective weed control system in fallow ground.

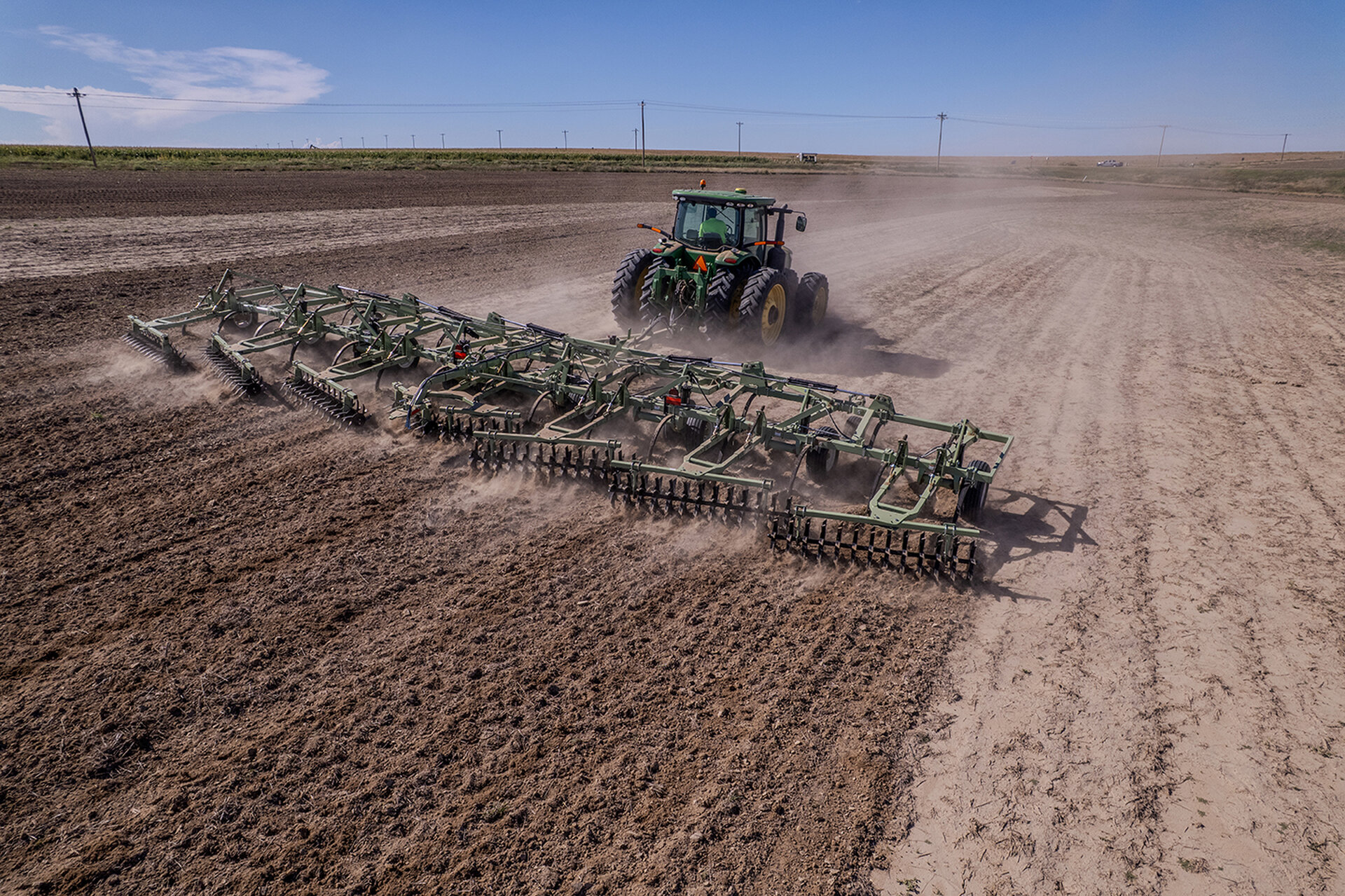

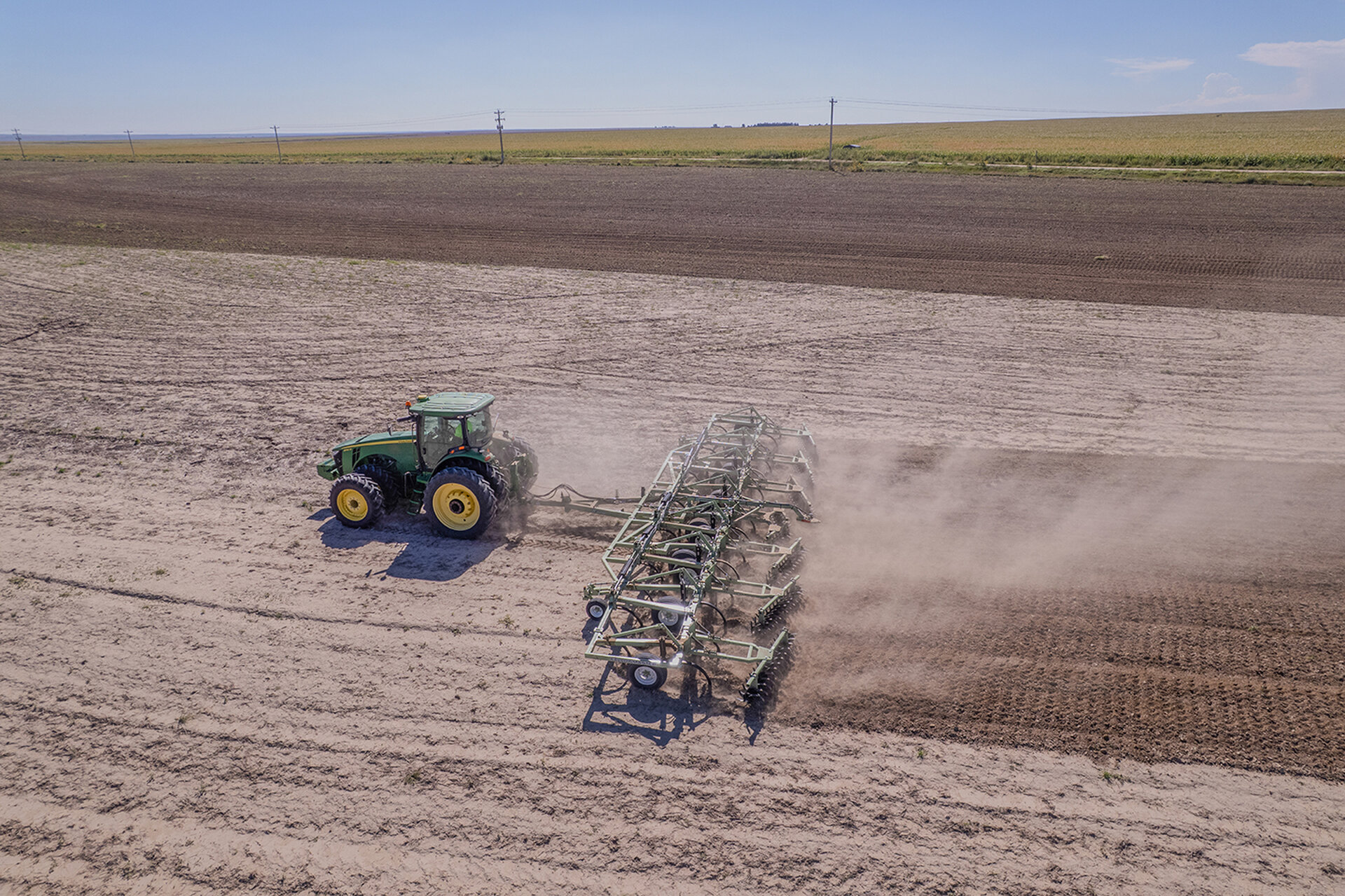

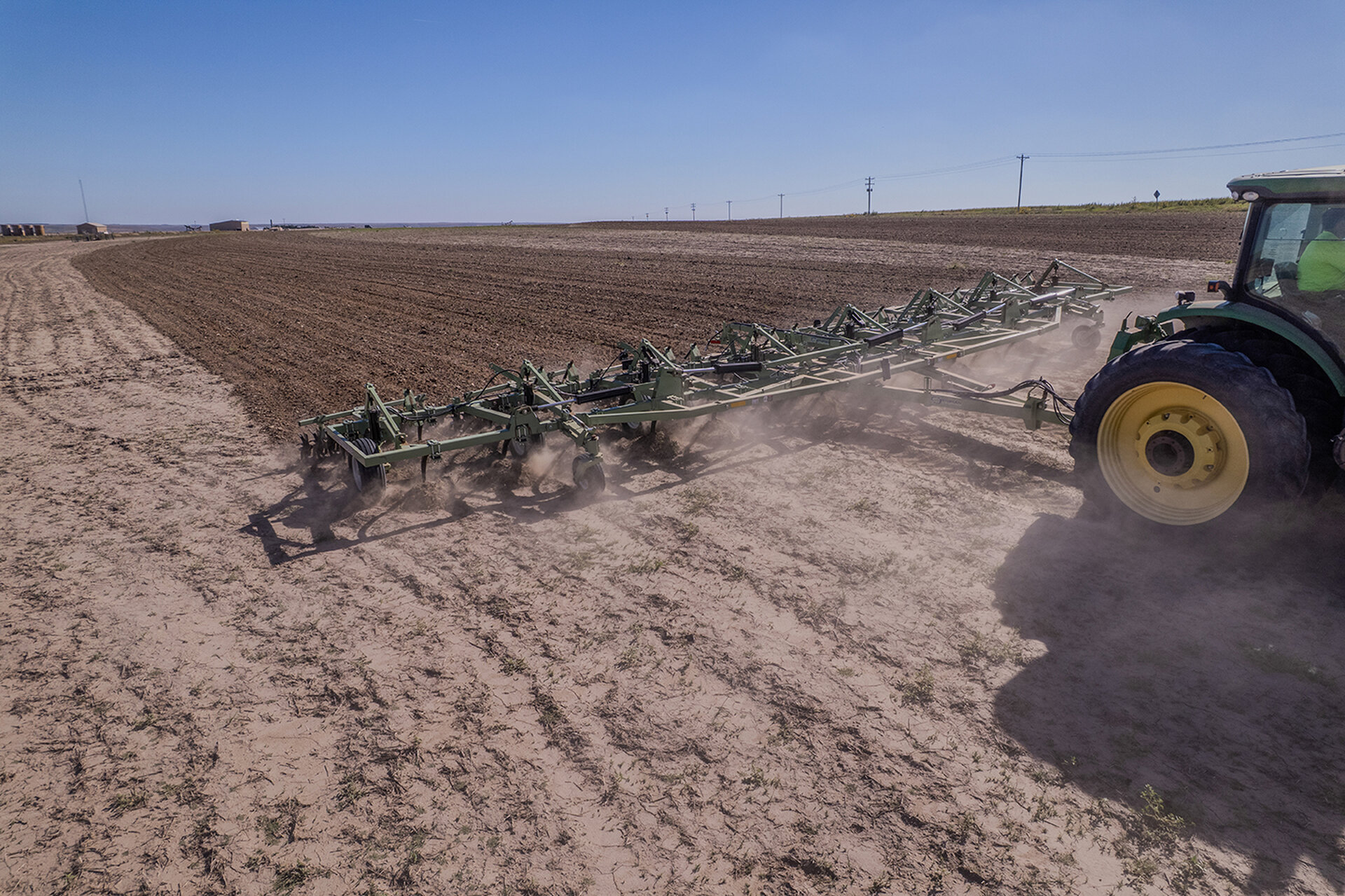

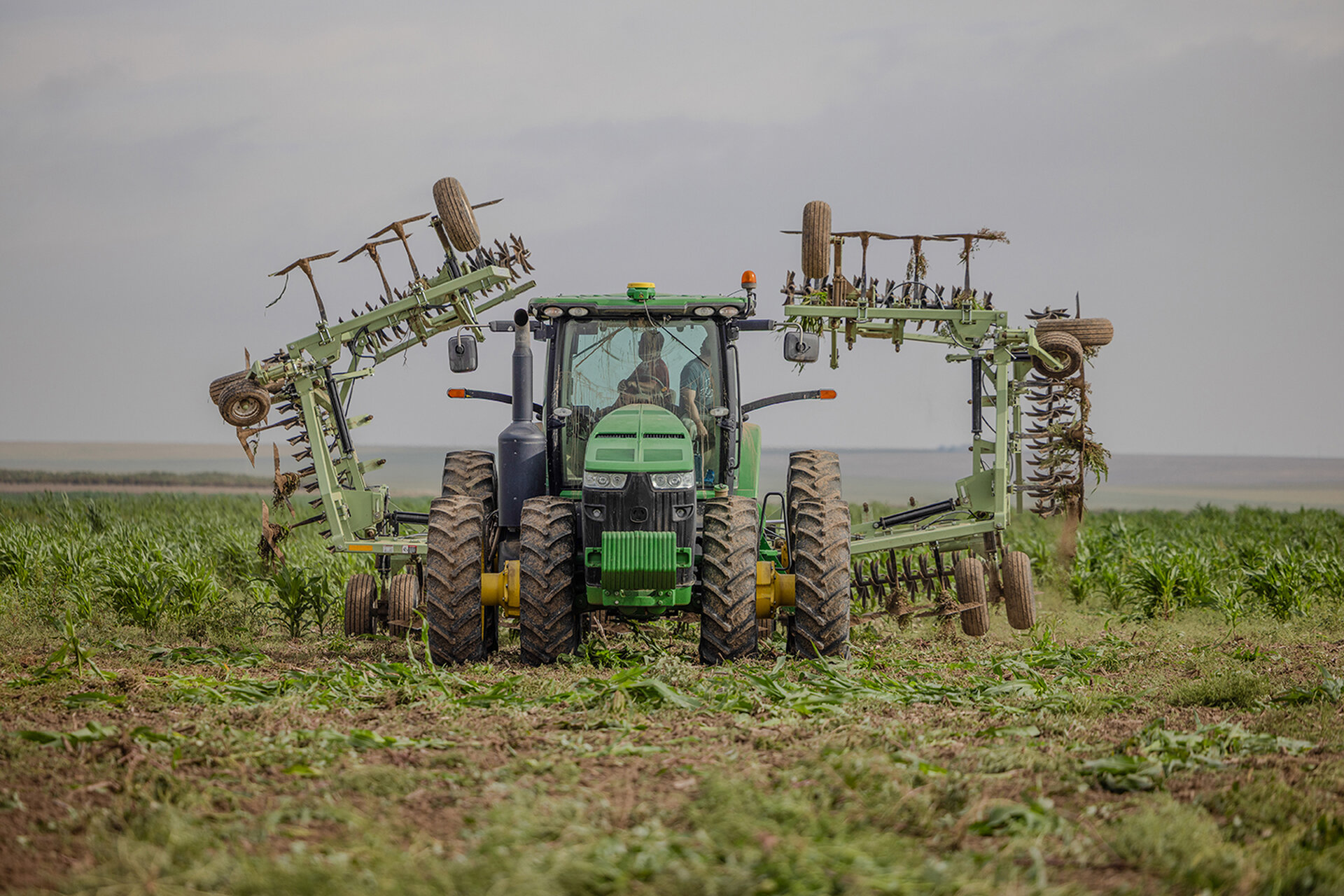

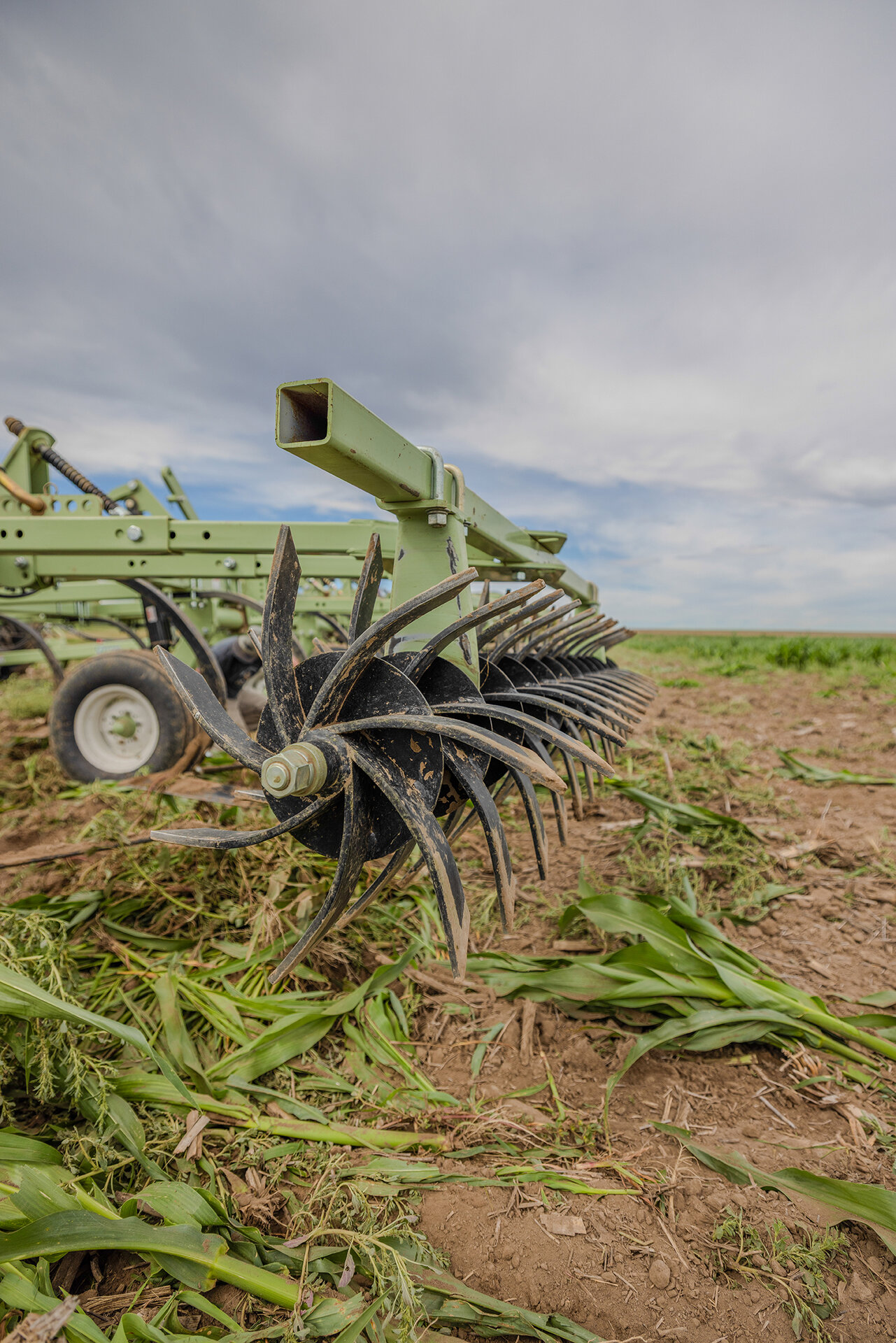

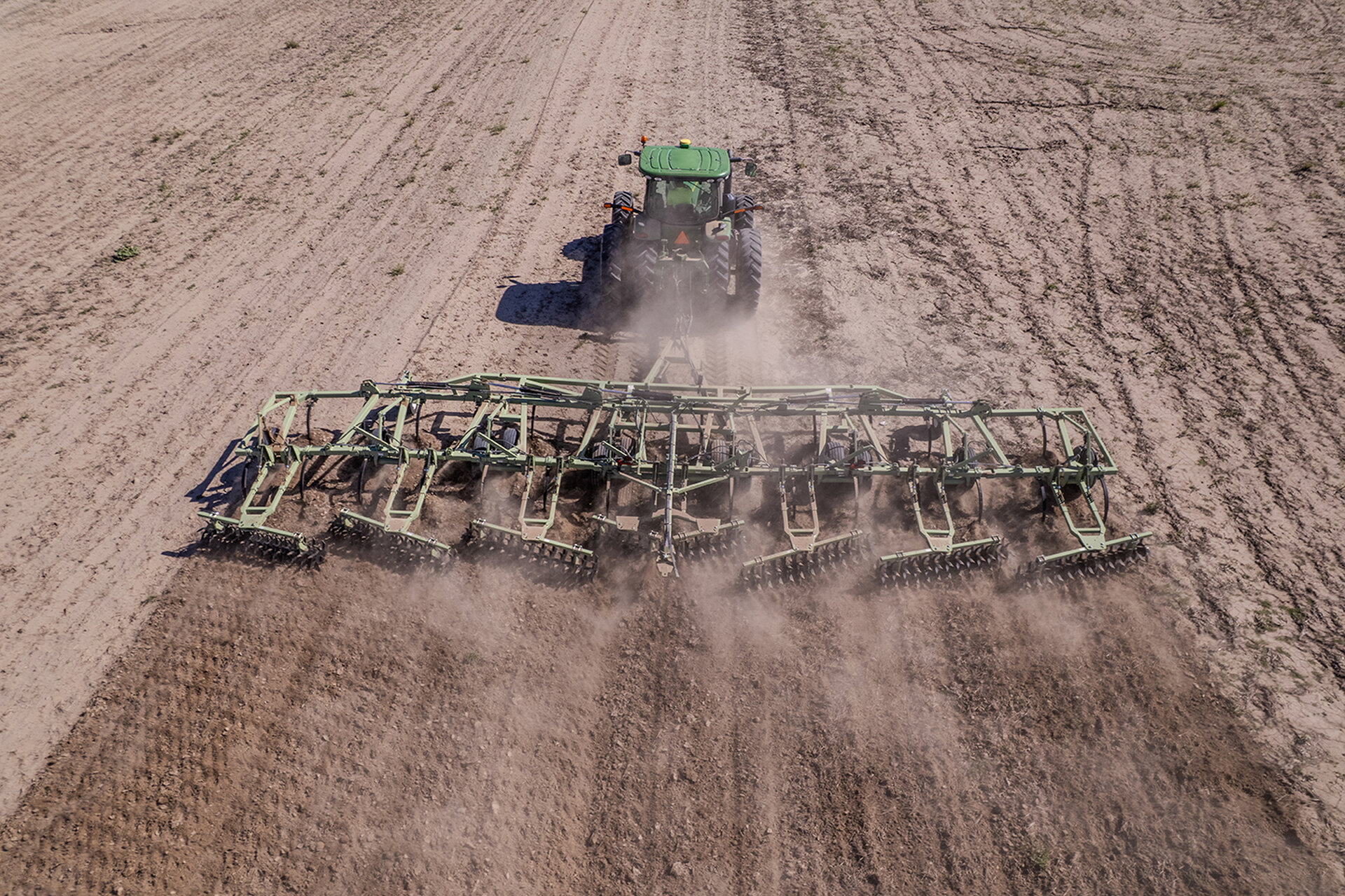

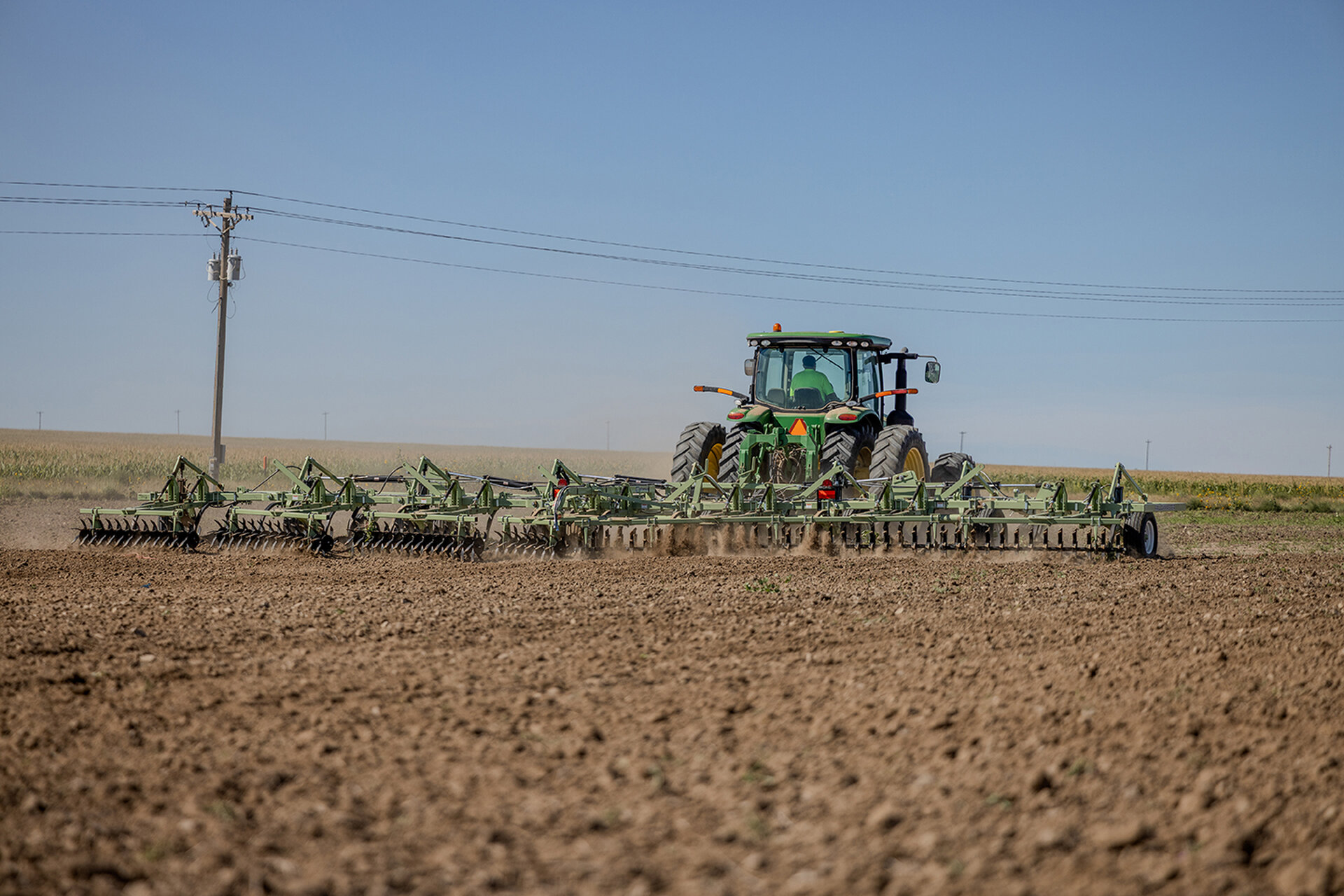

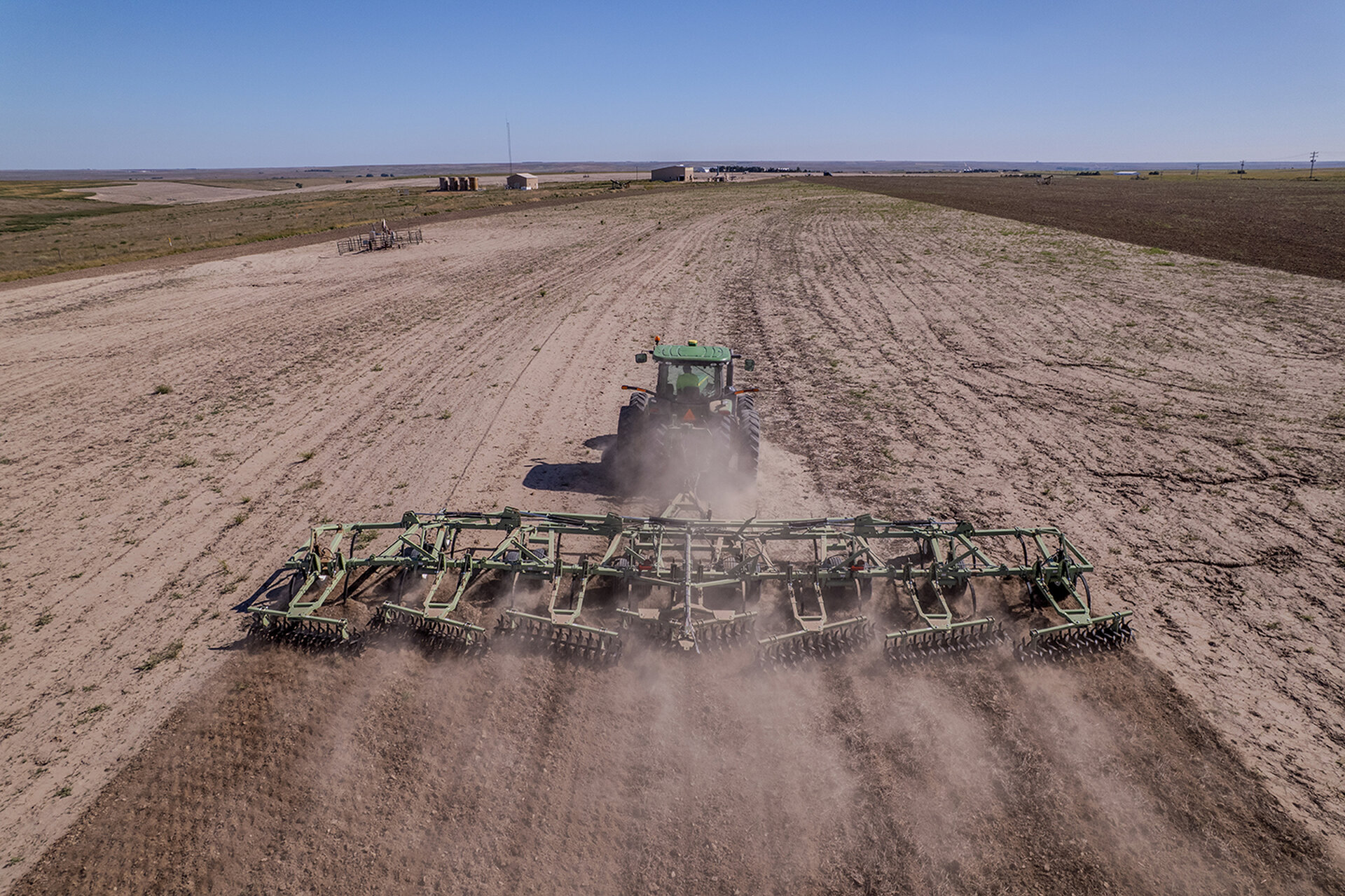

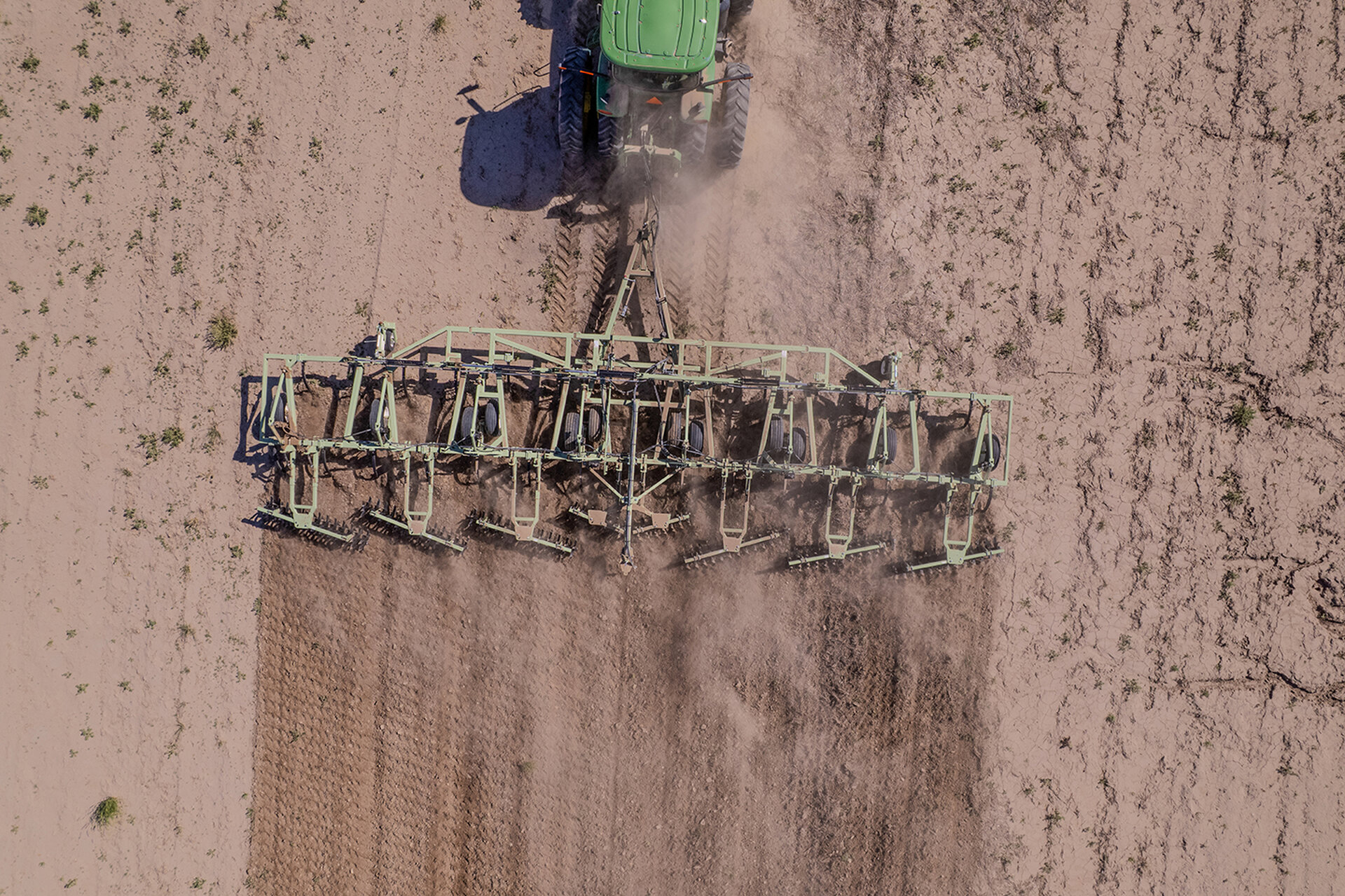

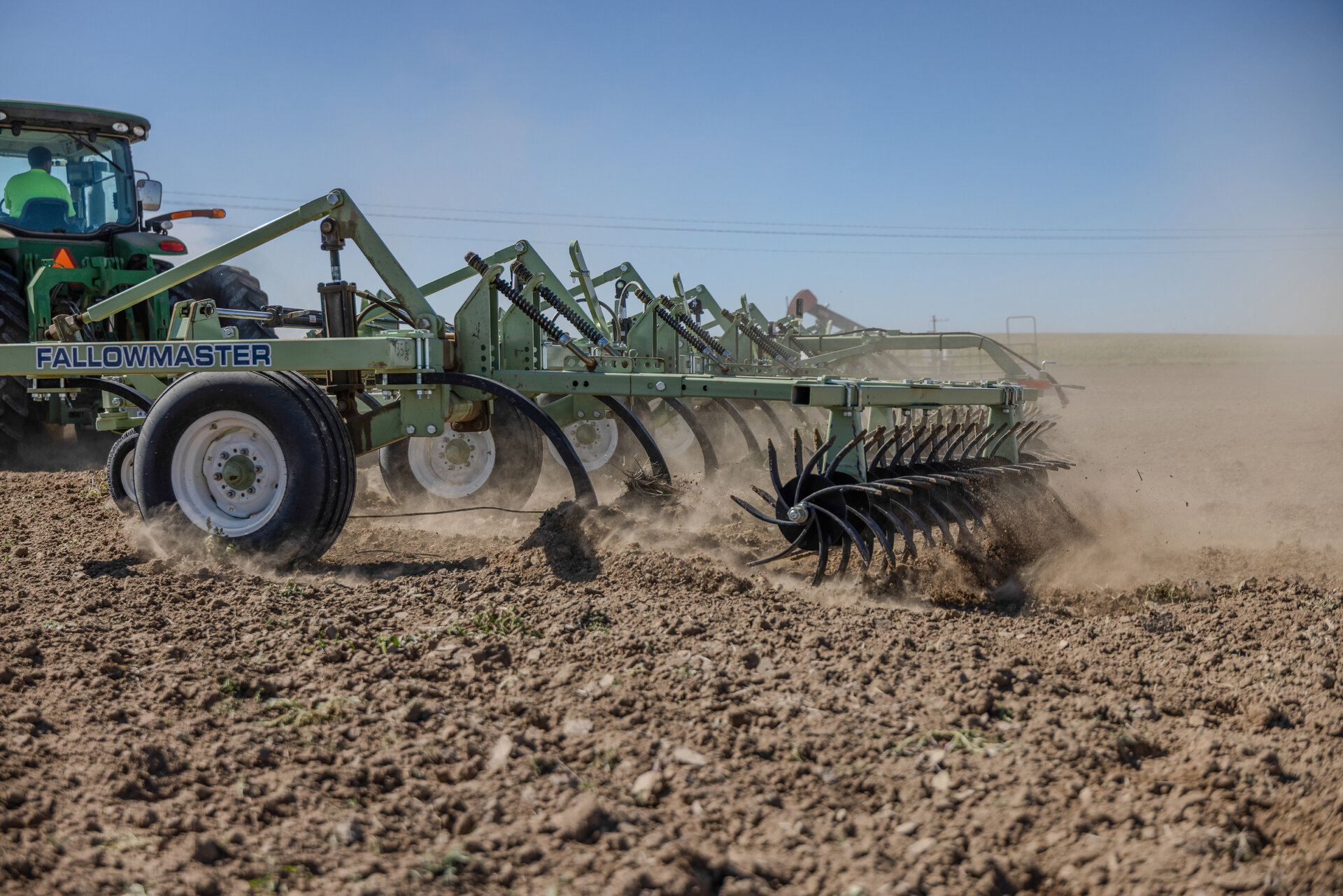

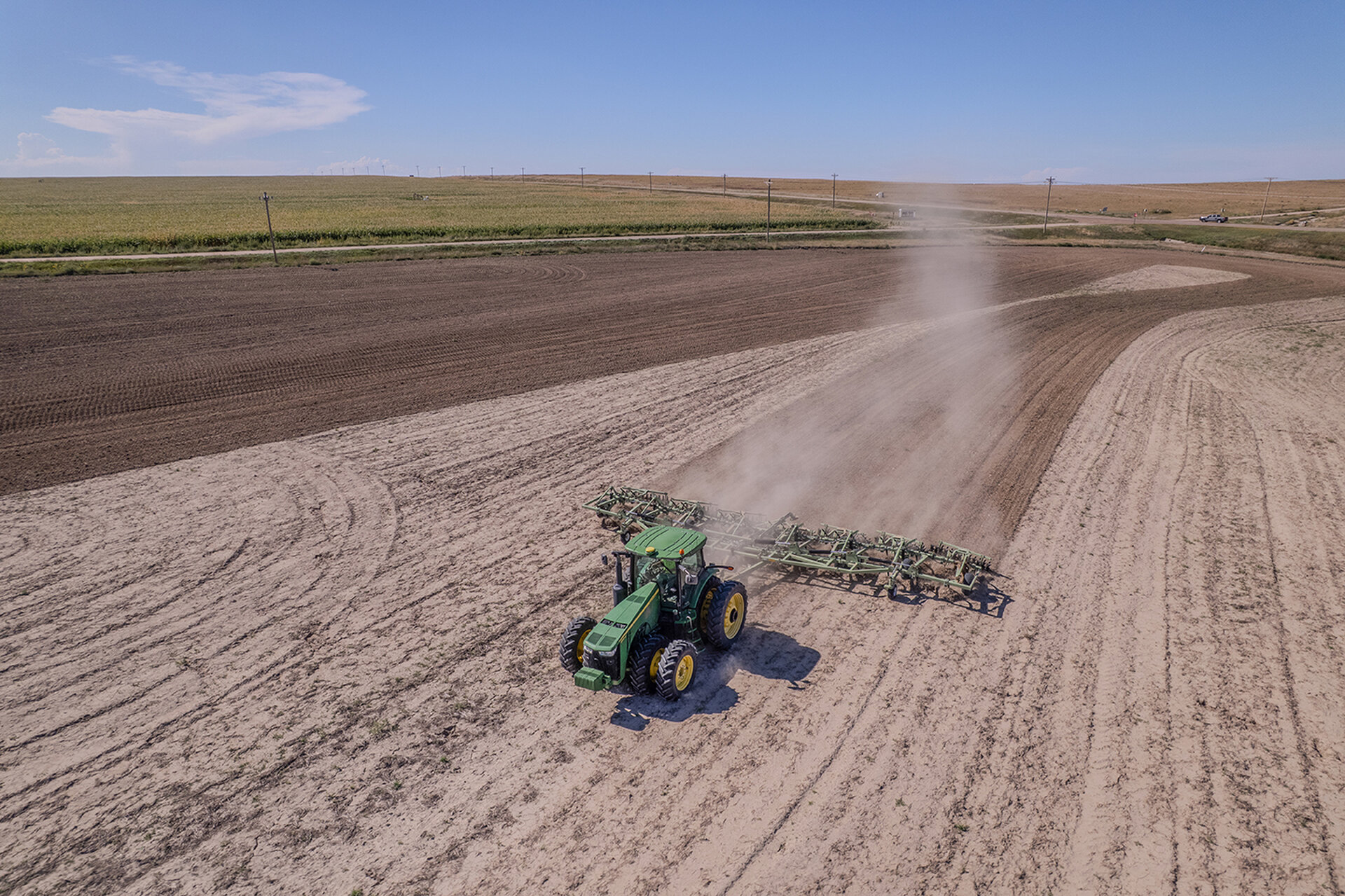

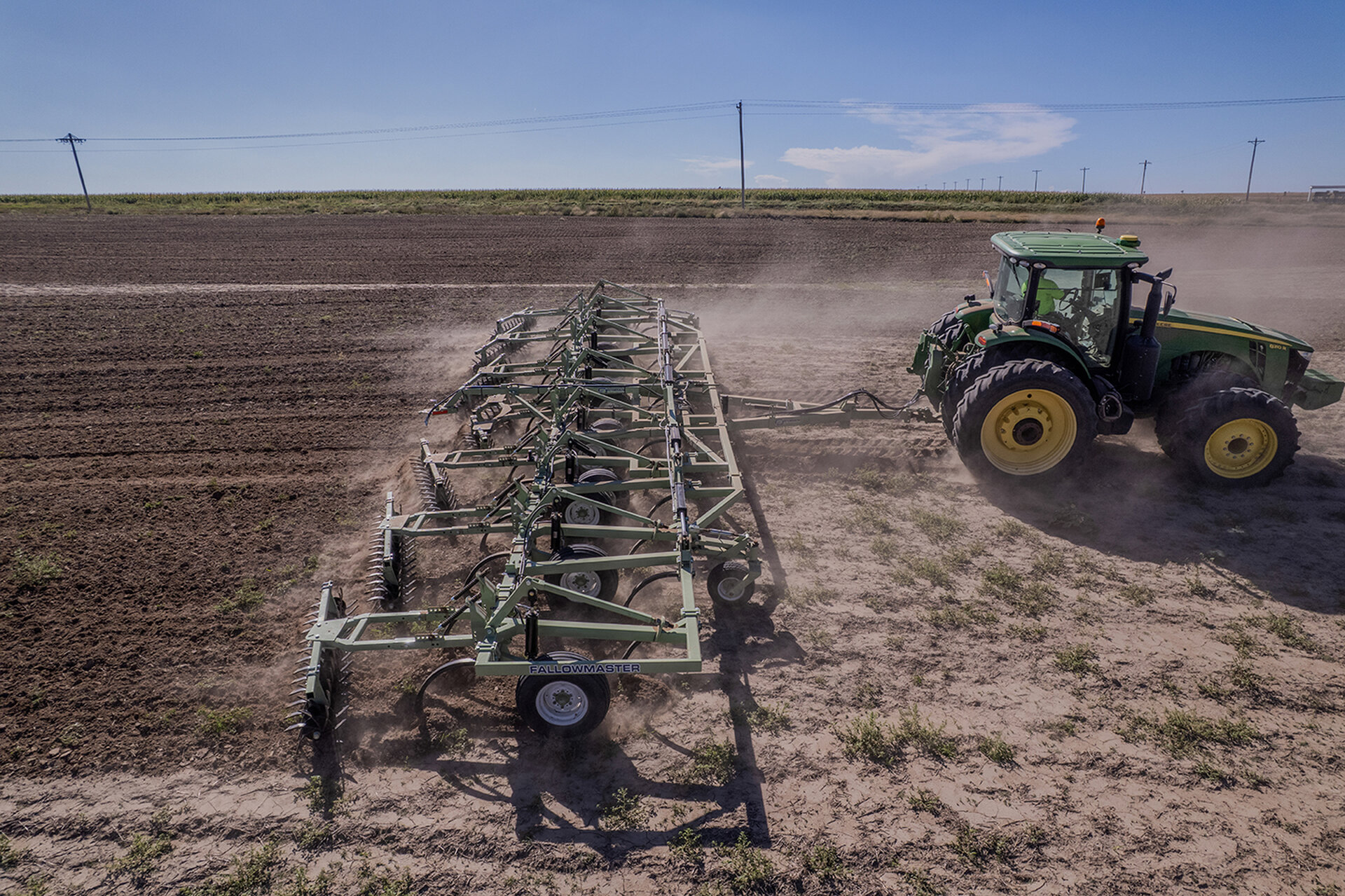

Fallow Master

FallowMaster KS 13-tall

Revolutionize Your Tillage

The Fallow Master is designed to give you high-efficiency tillage in a wide range of soil conditions by cutting through weeds and cover crops while leaving the majority of residue exposed for maximum water storage efficiency. The Fallow Master features two ranks of overlapping hard-faced sweeps and flexible frame sections for effective weed control and blanket tillage.

Blade Plow

Cut through residue for effective weed control and uniform tillage

Orthman’s Blade Plow conservation tillage machine features large overlapping hard-faced sweeps, high-strength steel standards and durable cutting coulters to reduce residue hairpinning. With working widths from a maneuverable 33’ to a commanding 55’, the Blade Plow is a cost-effective option for killing weeds in fallow ground or prior to planting.

Specifications

Width

28’

Fallow Master

35’

Fallow Master

42’

Fallow Master

49’

Fallow Master

63’

Fallow Master
Sweeps 17 21 25 29 37
Sections 4 5 6 7 9
MainframeWheels/Tires Single11L-15 Tires Walking Dual9.5L-15 Tires Single11L-15 Tires Walking Dual9.5L-15 Tires Walking Dual9.5L-15 Tires Walking Dual9.5L-15 Tires Walking Dual9.5L-15 Tires Walking Dual9.5L-15 Tires
WingWheels/Tires Single11L-15 Tires Single11L-15 Tires Single11L-15 Tires Single11L-15 Tires Single11L-15 Tires Walking Dual9.5L-15 Tires Single11L-15 Tires Single11L-15 Tires
Trans. Width 19' 8" 19' 8" 22' 4" 22' 4' 21' 8" 21' 8" 24' 30' 8"
Trans.Height 12'  12' 12' 10" 12' 10' 12'4" 12' 4" 14' 8" 15' 6"
Work Width 31' 4" 31' 4" 36' 4" 36' 4" 43' 43' 49' 62' 6"
Trans. Length 19' 4" 19' 4" 22' 22' 22' 22' 22' 22'
Approx. Weight 5,800 lbs 6,560 lbs 7,430 lbs 7,930 lbs 9,350 lbs 10,350 lbs 10,840 lbs 16,470 lbs
Tongue Weight - - - - - - - -
Min H.P.  125 to 165 125 to 165 155 to 210 155 to 210 190 to 250 190 to 250 220 to 300 280 to 380
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.

Width

33’ 4”

Blade Plow

40’ 8”

Blade Plow

48’

Blade Plow

55’

Blade Plow
Sweeps 9 11 13 15
Sections 3 5 5 5
MainframeWheels/Tires Walking Dual11L-15 Tires Walking Dual11L-15 Tires Walking Dual11L-15 Tires Walking Dual11L-15 Tires
WingWheels/Tires Single11L-15 Tires Single11L-15 Tires Single11L-15 Tires Single11L-15 Tires
Trans. Width 18' 6" 22' 10" 19' 4" 19' 4"
Trans.Height 15' 14' 2" 15' 15'
Work Width 33' 10" 41' 2" 48' 8" 55' 4"
Trans. Length 20' 8" 20' 8" 22' 8" 22' 8"
Approx. Weight 12,340 lbs 15,060 lbs 18,230 lbs 18,560 lbs
Tongue Weight - - - -
Min H.P.  - - - -
Due to continuing improvements in the design and manufacture of Orthman products, all specifications contained herein are subject to change without notice.
